Multimode Operations

Amateurs radio operators have a variety of modes to choose from when engaged in two way communication. A mode refers to the way the signal is modulated during transmission. Commonly used forms of modulation are AM, FM, SSB, and digital. In order for a signal to be transmitted and received in a readable manner it is modulated electronically. Both transmitter and receiver must be using the same form of modulation for the communication to be successful. Each of these modes will be discussed below. The table of preferred modes for voice communication gives some idea of what to expect when you use a particular band. Some modes such as Rtty use LSB for all bands.

SSB - AM - FM - Phone

Single sideband is more properly called a "mode" like AM or FM. It is a very efficient method of superimposing your voice or other information on a radio wave and the transmission of that radio wave. The method by which audio, (information), is impressed on a radio signal is called modulation. To modulate a radio wave is to add information to it that can be received on a receiver for some useful purpose. There are two types of modulation that most people are familiar with, AM (amplitude modulation), and FM, (frequency modulation), for which the AM and FM broadcast bands were named. You have used FM modulation on the 2 meter ham band and most likely used AM modulation when you were a kid using toy walkie talkies. You may also have used single sideband on other occasions.

CW (continuous wave)

CW (continuous wave) is a simple unmodulated signal unlike others which use some form of modulation. By interrupting the signal with a key, Morse code is sent. Thus Morse code is not a mode but, as the name implies, a code which is used to communicate by controlling the CW signal. Although it takes some time and practice to become proficient with the code using CW is one of the most reliable forms of communication as it can generally make it through the most difficult conditions where other signals can't.

2M0EWY

Multimode Operations

SSB - AM - FM - Phone

CW (continuous wave)

Data Modes

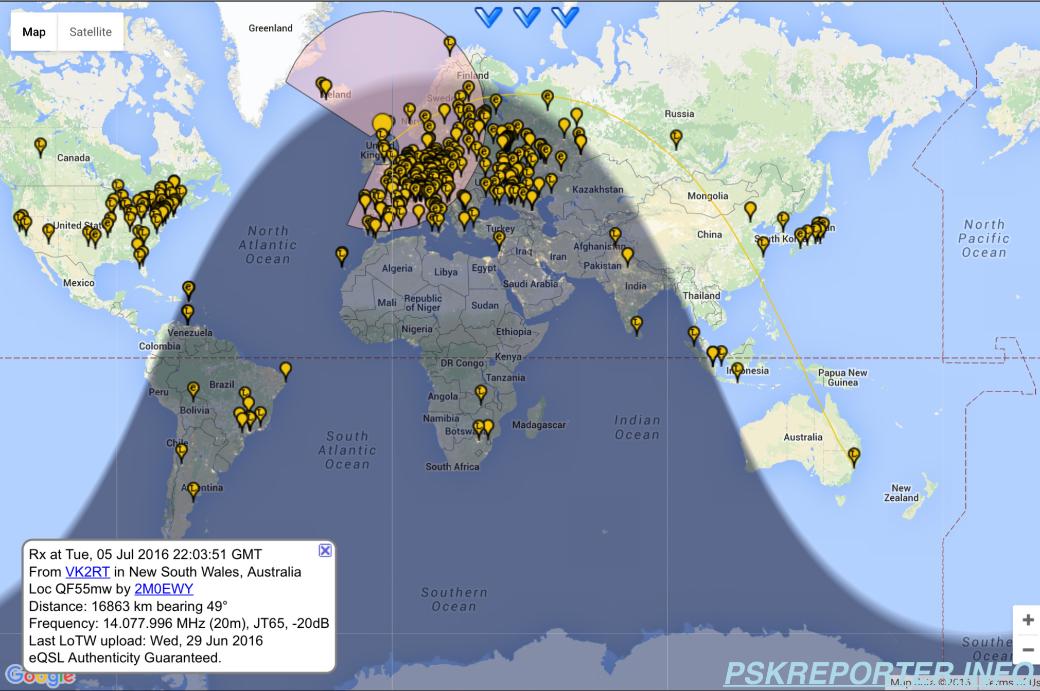

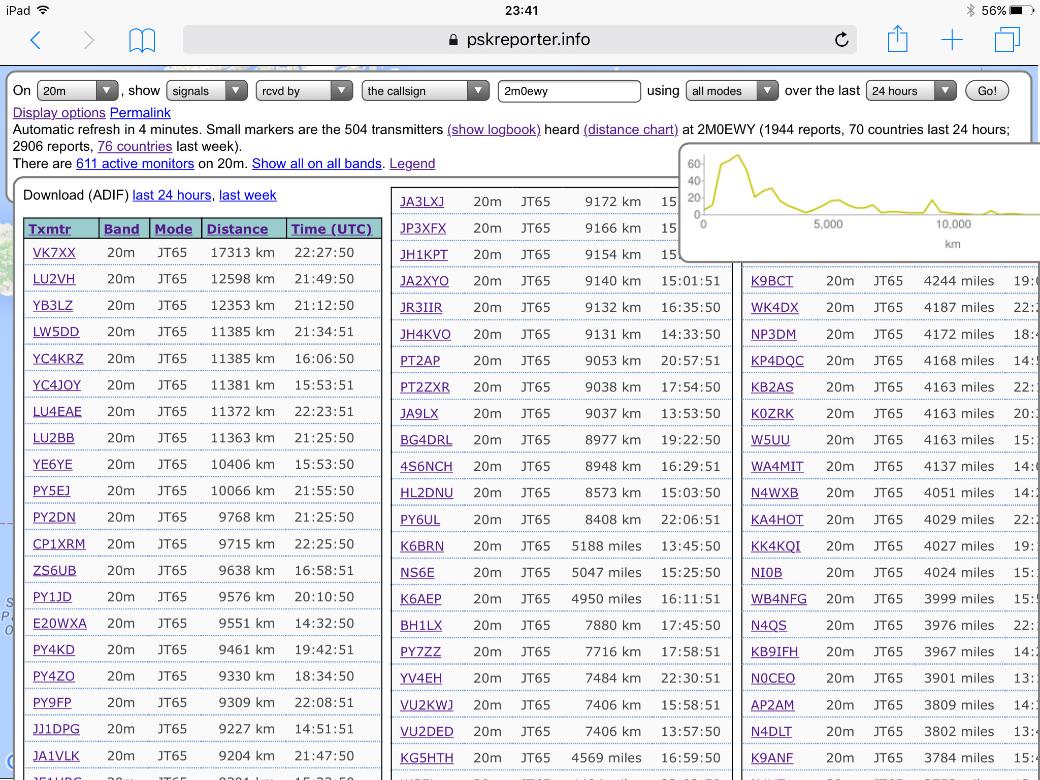

A 2M0EWY 24 hour screen print of operation on JT65 5th July2016
